PREPRUFE® pre-applied waterproofing solutions

A high performance, fully adhered, pre-applied waterproofing system for critical below grade applications.

Below ground waterproofing is a standout challenge for any construction project. Leaks from groundwater, storm water runoff or irrigation water may impact the foundation of any building that's improperly waterproofed—and when concrete is involved, there are any number of ways that water can travel into and around a structure.

  • Water can come up through the seams of a poorly designed or improperly installed waterproofing membrane
  • Job site conditions such as dust can spoil the adhesion of membrane to concrete and prevent a system from performing as designed
  • Imperfections, voids and cracks in concrete can create a pathway for water to migrate in and around a structure.
Documents

PREPRUFE® Product Documents

Product Name Product Data Sheet
PREPRUFE® 300R & 160R
Product Data Sheet
PREPRUFE® 300R Plus & 160R Plus
Product Data Sheet
PREPRUFE® 300S
Product Data Sheet
PREPRUFE® CJ Tape
Product Data Sheet
PREPRUFE® Tape
Product Data Sheet
Products & Accessories

Products

  • Product Name
  • Description
  • Key Benefits
  • Applications Type
PREPRUFE® 300R & 160R
Description

PREPRUFE® 300R & 160R Membranes are unique composite sheets comprised of a thick HDPE film, pressure sensitive adhesive, and weather resistant protective coating.

Key Benefits
  • Designed with fully adhered adhesive to adhesive watertight seams and easy to execute detailing.
  • Provides a barrier to water, moisture and gas physically isolating the structure from the surrounding substrate.
  • Simple and quick to install requiring no priming or fillets.
Application Type
PREPRUFE® 300R Plus & 160R Plus
Description

PREPRUFE® 300R Plus & 160R Plus membranes are unique composite sheets comprised of a thick HDPE film, pressure sensitive adhesive, and weather resistant protective coating. Designed with ADVANCED BOND TECHNOLOGY™ and dual adhesive ZIPLAP™ seams, PREPRUFE® Plus membranes form a unique, integral bond to poured concrete. This integral bond is specifically designed to provide a robust barrier to water, moisture and gas and prevents both the ingress and lateral migration of water.

Key Benefits
  • Forms a unique continuous adhesive bond
  • Provides a barrier to water, moisture and gas
  • Easy roll/kick out installation
  • Release liner free
Application Type
  • Applied horizontally to smooth prepared concrete, carton forms or well rolled and compacted earth or crushed stone substrate
  • Applied vertically to permanent formwork or adjoining structures
PREPRUFE® 300S
Description

GCP Applied Technologies (“GCP”) PREPRUFE  300S Membranes is an unique multiple-layer composite sheets comprised of a high performance HDPE film, pressure sensitive adhesive, and weather resistant protective coating. Designed with Advanced Bond Technology PREPRUFE 300S Membranes form a unique, integral bond to poured concrete. This integral bond is specifically designed to provide a robust barrier to water, moisture and gas and to prevent both the ingress and lateral migration of water. Selvedge overlaps and deliver superior performance in harsh conditions without the need for specialized equipment, heat or power.

Key Benefits
  • The unique continuous adhesive bond to concrete poured against it and is designed to prevent water migration, enabling it to be unaffected by ground settlement beneath slabs
  • Designed with fully adhered self-adhesive watertight seams and easy to execute detailing. Provides a barrier to water, moisture and gas physically isolating the structure from the surrounding substrate
  • Installed membrane is unaffected by wet jobsite conditions - Does not activate prematurely
Application Type

PREPRUFE 300S Membranes are supplied in rolls 1.2m wide, with a selvedge on one side to provide self-adhered laps for continuity between rolls. The rolls of PREPRUFE Membrane (on the side-lap) and Preprufe Tapes (including Preprufe Tape and Preprufe DS Tape) are manufactured with a disposable plastic release liner that must be removed before placing reinforcement and concrete. NOTE that the release liner must also be removed before application of any required Tapes and at all surfaces where a bond between layers is to be formed.

PREPRUFE® CJ Tape
Description

PREPRUFE® CJ Tape are specially formulated two sided, reinforced pressure-sensitive tapes.

Key Benefits
Application Type
  • Used in detail areas including end laps, penetrations and various tie-ins
PREPRUFE® Tape
Description

PREPRUFE® Tape is a specially formulated, two sided, reinforced, pressure-sensitive tape. The bottom side of the tape has a highly aggressive, pressure-sensitive adhesive which is designed to adhere to penetrations, protrusions and BITUTHENE® Membranes.

Key Benefits
  • Develops a continuous mechanical bond to concrete
Application Type
  • Used in detail areas including end laps, penetrations and various tie-ins.
Overview

Protect your building with a three-layer membrane

Comprised of a robust HDPE film, pressure sensitive adhesive and protective coating, PREPRUFE® forms a robust, permanent and aggressive adhesive bond with any concrete slab. PREPRUFE® products are specifically designed to perform in critical applications and incorporate Advanced Bond Technology™ to ensure fully adhered and long lasting product performance. This technology allows PREPRUFE® to form a continuous unbroken seal with the concrete for the design life of the project.

A proven, reliable waterproofing solution for critical applications

PREPRUFE® waterproofing Advanced Bond Technology™ creates a continuous, integral and permanent adhesive bond to concrete. This seal prevents the lateral migration of water into and around the structure and provides performance for the lifetime of the structure. In the case of a breach or installation error, this fully-bonded membrane ensures that water under hydrostatic pressure is unable to migrate between the membrane and concrete, therefore limiting the risk of catastrophic waterproofing failure. Independent testing and a 25+ year track record has proven that PREPRUFE® can resist lateral water migration at extremely high pressure – 70+ meters of hydrostatic head pressure. For this reason, PREPRUFE® systems are globally proven in the world's most critical applications.

Contractor friendly, straightforward installation to ensure performance and accelerate project schedules

Many systems in the market today require the use of welding or mechanically fastened laps. These installation requirements require a skilled installer, introduce risk to the installation and take time, effort and expertise. These methods requires a large crew and specialised equipment in addition to creating the potential for dangerous and unpleasant site conditions such as odour. In addition to the logistical challenges, these processes tend to be finicky— common jobsite challenges such as dust and moisture can easily result in incorrectly completed laps and details, both of which may result in expensive and costly long-term consequences.

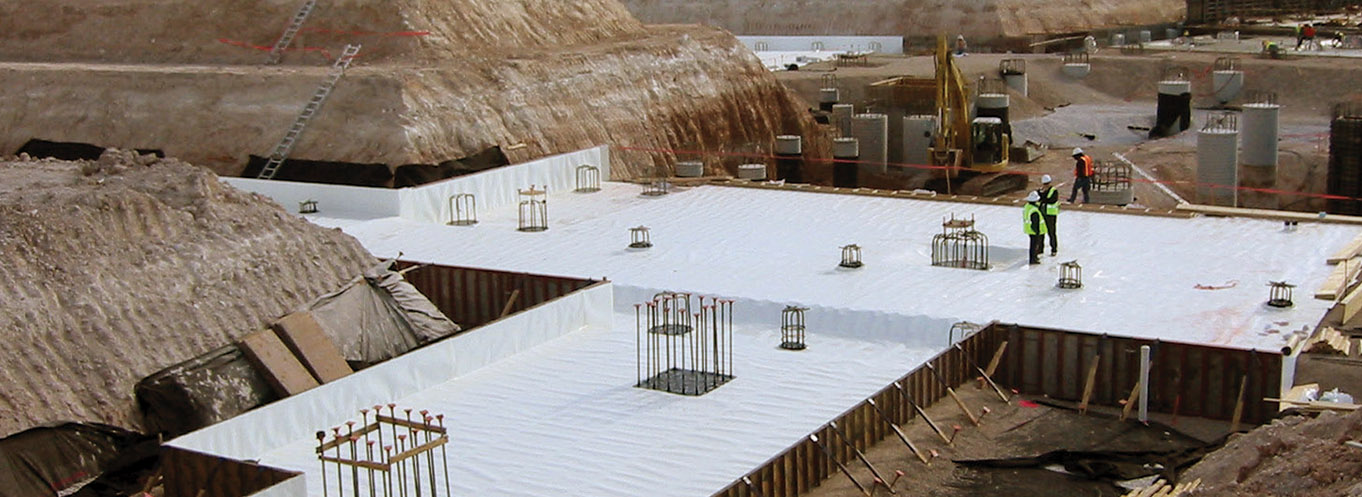

By contrast, PREPRUFE® Plus can be applied with a minimal crew and requires no special equipment for installation. Installation is simple: a "kick-out" design allows workers to unroll a sheet in seconds. A dual adhesive ZipLap™ seam allows sheets to bond to one another easily, and the adhesive is designed to resist common nuisance conditions onsite - dust, debris and moisture.

World-quality waterproofing

With applications on mega projects such as the Alaskan Viaduct, the largest bored tunnel on Earth, PREPRUFE® has been proven the world over in critical applications. Over the last 25 years, builders have installed more than 650 million square feet (over 60 million m2) of PREPRUFE® in below-ground applications—there’s hardly a more trusted brand in waterproofing. For more information on how PREPRUFE® can benefit your project, contact GCP today.
